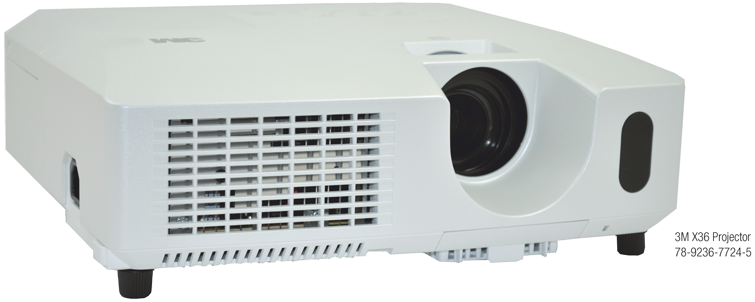

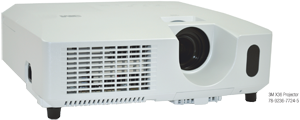

3M™ Digital Projector X36

Overview
Key Features
Specification
Download

The 3M Digital Projector X36 features 3,200 lumens of brightness and a 2000:1 contrast ratio for exceptional picture quality. Backed by the 3M brand for superior performance and reliability, the X36 features network functionality which allows effective management of assets to reduce cost of ownership, limit downtime and avoid unnecessary maintenance. Coupled with a new hybrid filter that operates for up to 4,000 hours under normal conditions the X36 is ideal for education and business organisations who are looking for minimal running costs over the lifetime of the projector.

Features

3200 lumens*
2000:1 contrast ratio
AutoVertical Keystone Adjustment
Quick Start and Instant Off
Network Contol, Management and Presenting
16W Audio Out sound
HDMI connectivity
USB Display
AMX Device Discovery
Advanced Security Features
Light weight: 3.6kg
*Indicates maximum lumens rating

Optical	System Specifications	Accessories Included
Resolution Native: True XGA (1024 x 768) Maximum: UXGA (1600 x 1200)	Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM	Network Contol, Management and Presenting Software Power cords (US, UK, Europe
Imager set 0.63", P-Si TFT Panel	SDTV/HDTV 525i (480i), 525p (480p), 625i (576i)/ 750p (720p@60Hz), 1125i (1080i@60Hz)	Remote control without laser (with AA batteries) RGB cable
	Digital Keystone Correction Vertical ±30 degrees	Multi-Language Operator's Guide CD Lens cap
Aspect Ratio native 4:3, 16:9 and 14:9 letterbox	Mouse Emulation USB	Optional Accessories
Colors 16.7 million true colors (24 bit)	Audio 1 x 16 Watt	Optional Accessories
Contrast Ratio 2000:1	Startup Screen Customizable	Lamp replacement kit 78-6972-0008-3
Brightness 3200 lumens (maximum), 2200 lumens (eco mode)	Noise Level Normal 37dB; Eco 30dB	Universal ceiling mount 78-6969-9874-5
Zoom Ratio 1.2:1	Feature Set Auto off, 4x digital magnification, image blank	Adjustable height extension 78-6969-9698-8
Optional Lenses NA	Horizontal Scan 31.5 - 106 kHz
Lamp UHB 210W (normal mode), 140W (eco mode)	Vertical Scan 56 - 120 Hz
Size	Technical Support
Dimensions (W x H x D) 12.5 x 3.9 x 11.3 in. (317 x 98 x 288mm)	• Free unlimited software downloads and updates available on our website at www.3m.com/meetings
Weight 3.6kg

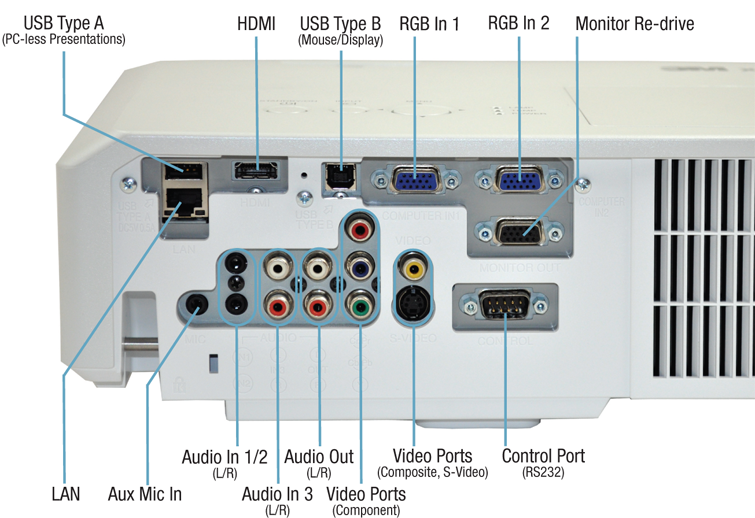

Warranties	Connections
Projector 3 years or 2500 hours	Computer Computer 1,2 15 pin HD-Sub – Analog Computer Input
Lamp 90 days or 180 hours	USB Type B – Mouse Emulation Monitor Out 15 Pin HD-Sub – Analog Computer Output
System Specifications	Video
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM	HDMI – Digital Video and Audio Component 3xRCA (Y, Cb/Pb, Cr/Pr) – Component Video input
SDTV/HDTV 525i (480i), 525p (480p), 625i (576i)/ 750p (720p@60Hz), 1125i (1080i@60Hz)	S-Video 4 Pin Mini-Din – S-Video Input Video RCA – Composite Video Input Audio In 3, 2xRCA (red, white) – Right and Left Channel Input
Digital Keystone Correction Vertical ±30 degrees	Wired LAN
Mouse Emulation USB	Standard: 10 BASE-T / 100 BASE-TX Connection: RJ-45
Audio 1 x 16 Watt	Featuring: PJCtrl: Control a projector via the network
Startup Screen Customizable

Screen Size Diagonal [inch (m)]	Image Size 4:3		Image Size 16:9
Screen Size Diagonal [inch (m)]	Projection DistanceMin. [inch (m)] Max. [inch (m)]		Projection DistanceMin. [inch (m)] Max. [inch (m)]
30" (0.8)	34" (0.9)	41" (1.0)	38" (1.0)	45" (1.1)
60" (1.5)	70" (1.8)	83" (2.1)	77" (1.9)	91" (2.3)
80" (2.0)	94" (2.4)	112" (2.8)	102" (2.6)	122" (3.1)
100" (2.5)	118" (3.0)	140" (3.6)	128" (3.3)	153" (3.9)
150" (3.8)	177" (4.5)	211" (5.3)	193" (4.9)	229" (5.8)
200" (5.1)	237" (6.0)	281" (7.1)	258" (6.6)	306" (7.8)
300" (7.6)	356" (9.0)	422" (10.7)	388" (9.9)	460" (11.7)
Note: These sizes are +10 percent. This is due to variations in the manufacture of the lens. If you are close to one of the endpoints you should verify with your unit that the image is the proper size at the proper distance.

Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

Important Notice
All statements, technical information, and recommendations related to 3M's products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M's current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M. Specifications subject to change without notice.

Warranty; Limited Remedy; Limited Liability
This product will be free from defects in material and manufacture for a period of 3 years or 2500 hours from the time of purchase. 3M MAKES NO OTHER WARRANTIES or CONDITIONS INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M's option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.

3M, and the 3M logo are trademarks of 3M Company. All other trade names referenced are the service marks, trademarks, or registered trademarks of their respective companies.
