Features
- XGA (1024 x 768) resolution
- 5000 lumens*
- Wired LAN
- Optical zoom
- Quick Start and Instant Off
- Vertical & Horizontal Keystone
- Input source naming
- 3 Year Standard Warranty
- Horizontal and vertical lens shift
- Whiteboard, Blackboard
and Daytime Modes
- PC-less presentations using:
– USB slot
– SD wireless card slot
- Anti-theft security
- Hybrid Filter
Hear audio the way
it was intended – with amazing highs, full bass from the lows and realistic immersion.
SRS WOW improves audio dynamics, and perception of low frequency bass and will make
your presentations command attention.
*Indicates maximum lumens rating
Features: -
Quick Start and Instant Off: The image will appear
in just 3 seconds after Power On and the unit can be instantly powered off after
a presentation.
Input source naming: Change the name of any input
to one of your own choosing for easier use (i.e. change "RGB Input" to "Computer"
or "Component" to "DVD".)
Auto Vertical Keystone: Automatically performs keystone
correction for an ideal screen setting, simply by pressing the button.
Resolutions preset: Recognizes and resizes special
resolutions, such as WXGA, and places them in the optimum position. User's own resolutions
can also be stored as custom modes.
Whiteboard, Blackboard and Daytime Modes: Whiteboard
Mode helps reduce peak white brightness of projection on a whiteboard, reducing
annoying glare. Blackboard Mode helps provide better color balance when projecting
onto a colored background. Daytime Mode allows the viewer to see vivid images, even
in high-glare environments.
Anti-theft security bar: Serving as both a visible
and actual deterrent, a steel security bar is connected to the chassis to help provide
a strong anchor point for a lock chain.
"My Screen" lock: Users can personalize the startup
screen with a warning or ownership message and lock this screen with a pin code
number.
Transition detector: Locks the projector from use
if the projection angle or settings are changed from the installed position. Requires
a user-set numeric code for reactivation.
Optional Wireless Connectivity
The 3M X95i projector features wireless presentation capabilities, eliminating the
need to pass around a connection cable when multiple presenters are in the room.
It can also display up to four individual computer presentations simultaneously,
and individual user names can be displayed for the connected computers, making it
easier to keep track of the displayed presentations. Additionally, the MIU LiveViewer
software provides a quick and easy connection wizard for setting up a wired or wireless
network presentation.
PC-Less Presentations
By using a SD memory card or a USB memory device, you can present .jpg, .png, .bmp
and .mpeg4-SP files from the projector without being connected to a computer. This
is ideal for those who give mobile presentations or for those who have security
concerns about carrying their PC to different locations.
Just store files like your digital camera pictures on an SD card, or store .jpg
data files on a USB memory device and insert either into the designated slot on
the projector connection panel, and you're ready to display.
Software Capabilities
The 3M X95i offers networking capability, while the PJMan software gives users the
ability to control, diagnose and manage a group of projectors from a single, remote
location. Images can also be transferred via LAN connection to individual or multiple
projectors. These images are stored in the projector's memory and can be displayed
using "My Image" feature. My Image can be recalled and displayed locally using the
projector's remote control, or remotely over the LAN connection. Additionally, email
notifications are automatically sent to the system administrator for routine maintenance
and error alerts. When multiple computers have access to the projector via the network,
a designated user can control presentation privileges (and block unwanted access),
ensuring that the current presentation is not interrupted unexpectedly. Users can
schedule routine and special projector events, including power on, power off, input
selection and other settings.
E-Shot
For special announcements, emergency information distribution, a unique sign in
a hotel lobby or conference center, the downloadable E-shot software function can
transmit up to four still pictures or files to a single projector connected via
the local area network.
Hybrid Filter
Thanks to the X95i hybrid filter, maintenance and cleaning are much less frequent,
making longer operation possible. The new hybrid air filter reduces operating costs
by delivering at least 4000 hours in normal operating conditions, which combines
with the long life lamp and LCD panel to offer an almost "fit and forget" maintenance
interval. With the lamp door on top and a side-mounted filter, maintenance and replacement
of these parts can be done easily, even when the projector is ceiling-mounted.
|
Image Size 4:3
|
Screen Size
Diagonal [inch (m)]
|
Projection DistanceMin.
Minimum [inch (m)]
Maximum [inch (m)]
|
|
40" (1.0)
|
47" (1.2)
|
57" (1.4)
|
|
60" (1.5)
|
71" (1.8)
|
86" (2.2)
|
|
100" (2.5)
|
120" (3.0)
|
144" (3.7)
|
|
150" (3.8)
|
181" (4.6)
|
217" (5.5)
|
|
200" (5.1)
|
241" (6.1)
|
291" (7.4)
|
|
300" (7.6)
|
363" (9.2)
|
437" (11.1)
|
|
Image Size 16:9
|
Screen Size
(Diagonal)
|
Projection Distance
Minimum (m)
Maximum (m)
|
|
40" (1.0)
|
51" (1.3)
|
62" (1.6)
|
|
60" (1.5)
|
78" (2.0)
|
94" (2.4)
|
|
100" (2.5)
|
131" (3.3)
|
157" (4.0)
|
|
150" (3.8)
|
197" (5.0)
|
237" (6.0)
|
|
200" (5.1)
|
263" (6.7)
|
317" (8.0)
|
|
300" (7.6)
|
395" (10.0)
|
476" (12.1)
|
Note: These sizes are +10 percent. This is due to variations in the manufacture
of the lens. If you are close to one of the endpoints you should verify with your
unit that the image is the proper size at the proper distance. * USB secure memory
devices and USB hubs are not supported.
|
Optical
|
System Specifications
|
Resolution
Native: true XGA (1024 x 768)
Maximum: UXGA (1600 x 1200)
|
Video Compatibility
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM
|
Imager set
0.79", P-Si TFT panel
|
SDTV/HDTV
525i (480i), 525p (480p), 625i (576i), 750p (720p@60Hz), 1125i (1080i@60Hz)
|
Aspect Ratio
4:3 native and 16:9 letterbox supported
|
Digital Keystone Correction
Vertical ±40°; Horizontal ±20°
|
Colors
16.7 million true colors (24 bit)
|
Audio
4 x 4W SRS WOW™ Technology
|
Contrast Ratio
1000:1
|
Startup Screen
Customizable
|
Brightness
5000 lumens (maximum rating)
|
Noise Level
Normal 39dB; Whisper 33dB
|
Projection Lens
F1.7-1.9 (f=24-29mm)
|
Horizontal Scan
31.5-106kHz
|
Lens Shift
1:1 to 9:1 (vertical); 6:4 to 4:6 (horizontal)
|
Vertical Scan
56-120Hz
|
Throw Ratio (Distance: Image Width)
1:1.5 - 1:1.8
|
Power Consumption
460W
|
Screen Size (range),
30-350 inches diagonal
|
Power Supply
Universal: 100-120V/220-240V, 50/60Hz
|
Zoom/Focus
Manual
|
Regulatory Approvals
UL, cUL, FCC Part 15 -Class B, -CE, EN60950
|
Zoom Ratio
1.2:1
|
Operating Temperature
41°-95°F (5°-35°C)
|
Optional Lenses
Short Throw Lens: throw ratio 1:1.2 ~ 2.0
Long Throw Lens: throw ratio 1:2.0 ~ 3.9
Ultra Long Throw Lens: throw ratio 1:3.9 ~ 7.4
|
Storage Temperature
-4°-140°F (-20°-60°C)
|
Lamp
UHB 275W (normal mode), 220W (whisper mode)
|
Altitude
Sea level to 6000 ft. (1,829m)
|
Lamp Life
2000 hours (normal mode), 3000 hours (whisper mode)
|
|
|
Size
|
Minimum System Requirements for Wireless Software
|
Dimensions (W x H x D)
16.5 x 5.5 x 12.6 in. (418 x 139 x 319mm)
|
Software Requirements
Microsoft® Windows® XP Home Edition or Professional
Windows 2000 Professional Service Pack 4
Windows Vista Home Basic 32bit/Premium 32bit
Windows Vista Ultimate 32bit/Business 32bit
|
Weight
7.19kg
|
Hardware Requirements
Minimum RAM: 64MB - 2000 / 128M - XP
|
|
Warranties
|
Hard Drive Space
20MB
|
Projector
3 Years Standard or 2500 hours, whichever comes first* *See Product Warranty and
Safety Guide for the complete warranty statement. The product Warranty and Safety
Guide is on the Technical Documentation section of www.mmm.com/meetings
|
CD-ROM Drive
|
Lamp
90 days or 180 hours
|
Technical Support
|
|
|
• Free unlimited software downloads and updates available on our website at www.3m.com/meetings
|
|

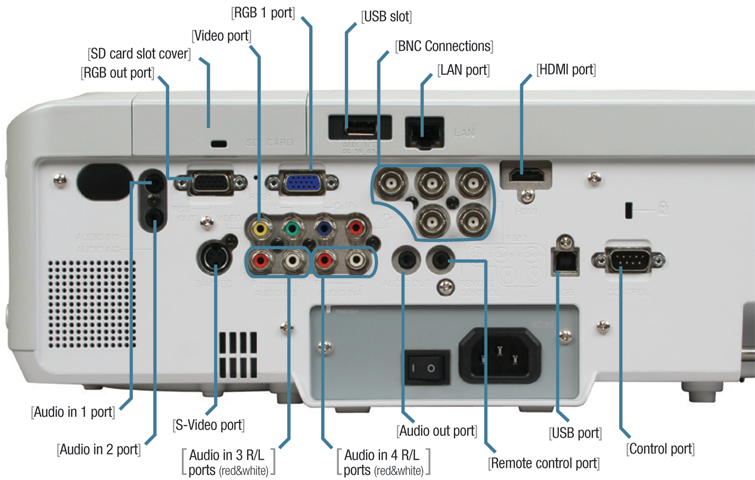

Computer
|
|
RGB1
|
15 pin HD - sub-analog computer input
|
|
RGB2
|
5xBNC - analog computer/component input
|
|
USB
|
USB Type B - Mouse Emulation
|
|
RGB Output
|
15 Pin HD - sub-analog computer output
|
|
Control
|
9 Pin D - sub-RS-232 control port
|
|
LAN
|
RJ45 - wired LAN
|
|
SD Card
|
SD Card slot - SD memory card or SD
wireless LAN card
|
|
AUX I/O
|
USB Type A - USB memory stick
|
|
Video
|
|
HDMI
|
HDMI - digital video and audio
|
|
Component
|
3xRCA (Y, Cb/Pb, Cr/Pr) - component
video input
|
|
S-Video
|
4 Pin Mini - Din-S-video input
|
|
Video
|
RCA-composite video input
|
|
Audio
|
|
Audio In 1, 2
|
3.5mm stereo mini jack - PC audio input
|
|
Audio Out*
|
3.5mm stereo mini jack - audio output
|
|
Audio In 3, 4
|
2xRCA (red, white) - right and left channel
audio input
|
|
*Audio output is shaded with computer and video inputs
|
|
Wired LAN
|
Standard: 10 BASE-T / 100 BASE-TX
Connection: RJ-45
|
|
Wireless LAN (using optional Wireless SD card)
|
Standard: IEEE 802.11b/g
Wireless interface: SD wireless card 802.11b/g
Operation range: Up to 150 ft (46m)
Frequency range: 2.4GHz to 2.48GHz
Channels: 1 to 10
Security: WEP (64/128 bit), WPA-PSK/PSK2 (TKIP/AES)
|
|
Accessories Included
|
Power cords (US, UK, Europe)
VGA cable
Remote control (with batteries)
Application software CD (MIU LiveViewer)
Multi-language operator's guide CD
SD slot cover lock
Free unlimited software downloads and updates available
on our website at www.3m.com/meetings
|
|
|
|
|
Optional Accessories
|
|
SD wireless card 802.11bg
|
78-6969-9931-3
|
|
Lamp replacement kit (X95i)
|
78-6969-9998-2
|
|
Universal ceiling mount
|
78-6969-9874-5
|
|
Short Throw Lens
|
78-6969-9890-1
|
|
Long Throw Lens
|
78-6969-9891-9
|
|
Ultra Long Throw Lens
|
78-6969-9892-7
|
Specifications subject to change without notice.
WOW, SRS and
are trademarks of SRS Labs, Inc. WOW technology is incorporated under license from
SRS Labs, Inc.
Hg—LAMP CONTAINS MERCURY. Manage in accordance with disposal laws. See www.lamprecycle.
org or call 1-800-328-1371(USA), 1-800-364-3577 (Canada). For product disposal see
www.eiae.org (USA) or www.epsc.ca (Canada).
3M Projection
Systems
© 3M 2009. All rights reserved. Please recycle.
Important Notice
All statements, technical information, and recommendations related to 3M's products
are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine
if it is suitable for your intended application. You assume all risks and liability
associated with such use. Any statements related to the product which are not contained
in 3M's current publications, or any contrary statements contained on your purchase
order shall have no force or effect unless expressly agreed upon, in writing, by
an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability
This product will be free from defects in material and manufacture for a period
of 3 years or 2500 hours from the time of purchase. 3M MAKES NO OTHER WARRANTIES
or CONDITIONS INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective
within the warranty period stated above, your exclusive remedy shall be, at 3M's
option, to replace or repair the 3M product or refund the purchase price of the
3M product. Except where prohibited by law, 3M will not be liable for any indirect,
special, incidental or consequential loss or damage arising from this 3M product,
regardless of the legal theory asserted.
3M, and the 3M logo are trademarks of 3M Company. Used under license in Canada. All
other trade names referenced are the service marks, trademarks, or registered trademarks
of their respective companies.
3M Projection
Systems
